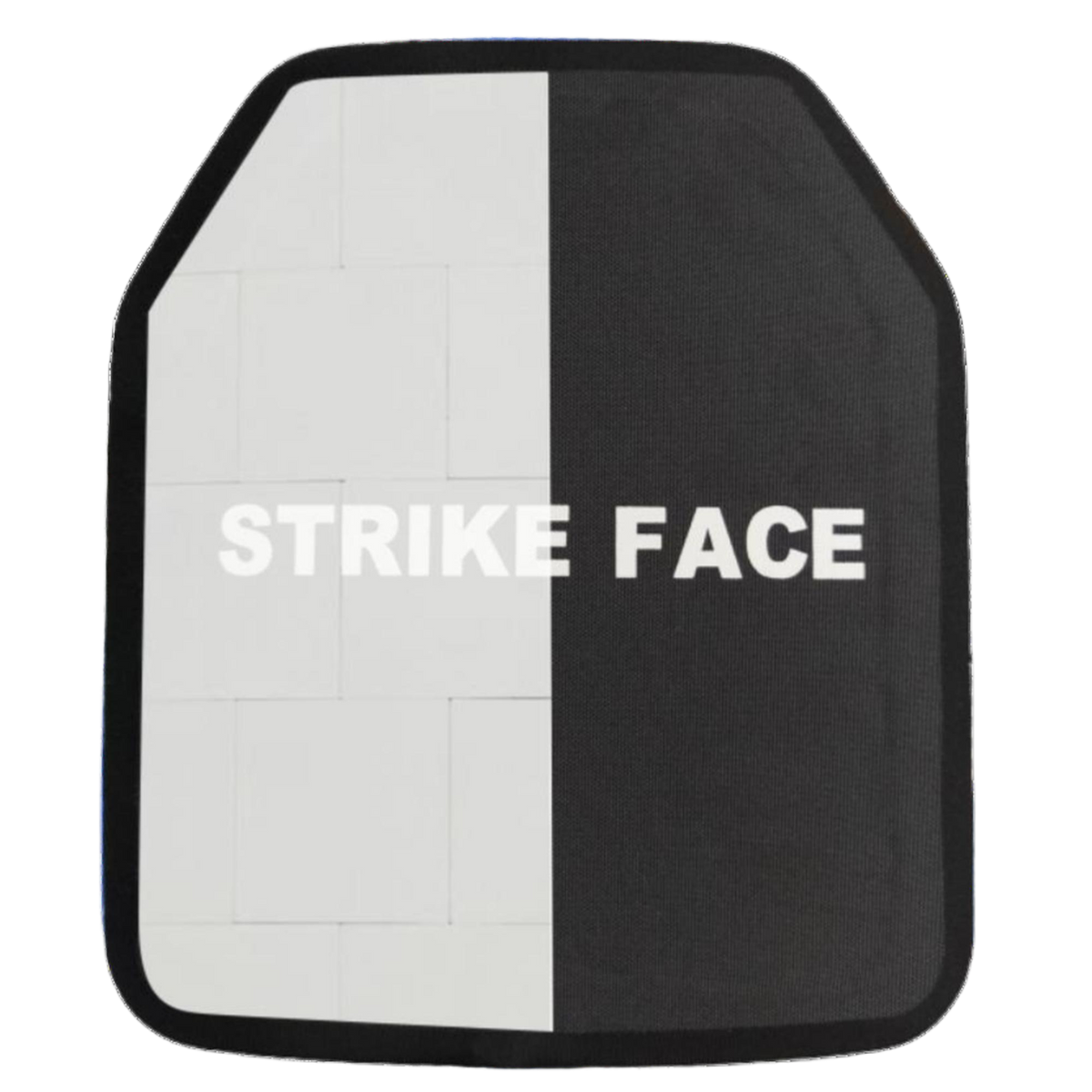

TITAN Series | Ballistic Plate NIJ IV

Sale Sold out

Product Options Sic Ceramic / 20mm Sic Ceramic / 22mm Al₂O₃ Ceramic / 20mm Al₂O₃ Ceramic / 22mm

DESCRIPTION

The TITAN Series delivers uncompromising protection for high-risk operations. Built with advanced ceramic armor technology, this premium ballistic plate provides Level IV protection with exceptional durability and impact resistance.

SPCIFICATIONS

• Protection: NIJ Level IV Stand Alone (Rifle Rounds), NIJ 0106.01 compliant.

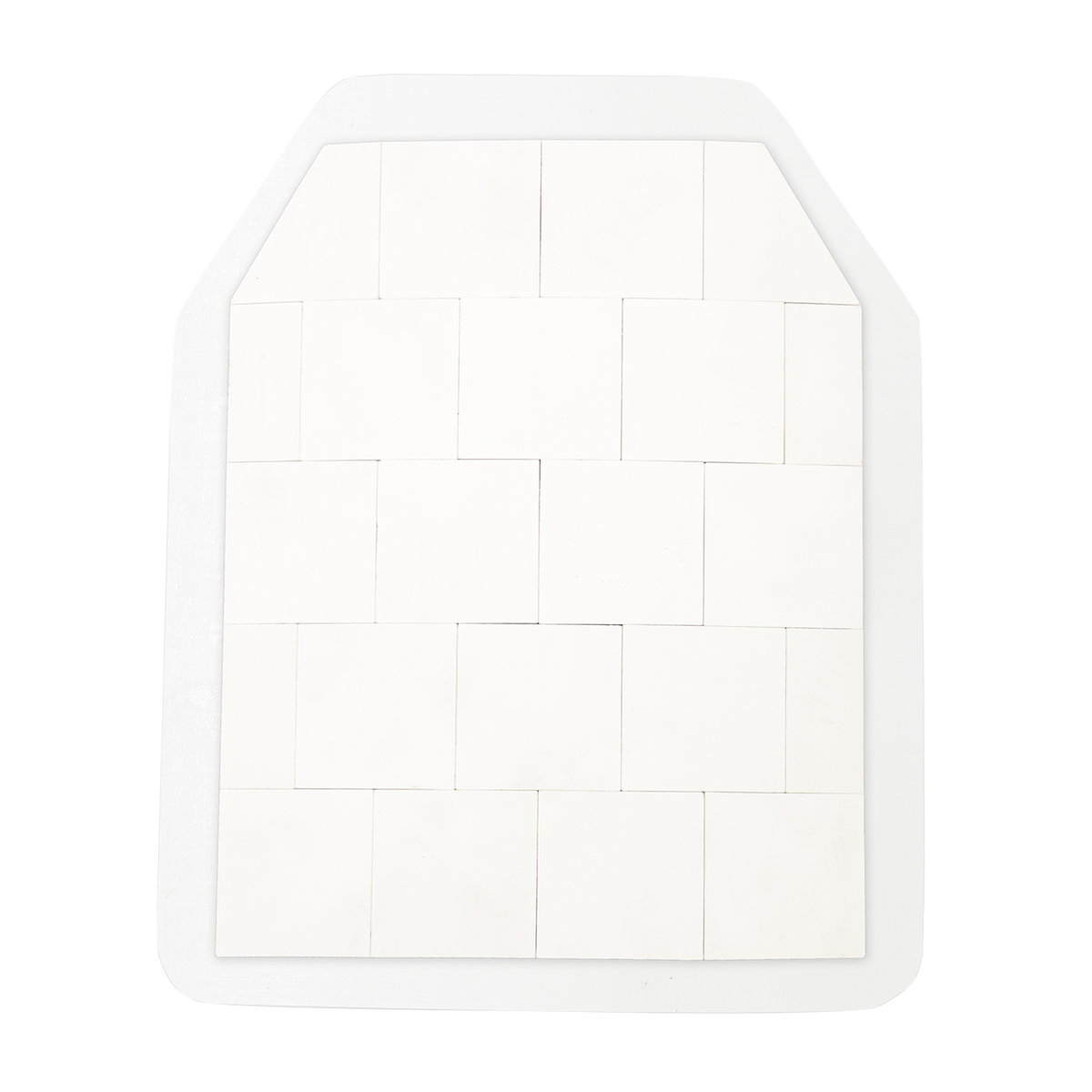

• Material: Ceramic with UHMWPE backing
• Exterior Cover: Waterproof polyester
• Curvature: Single Curve
• Cut: SAPI
• Thickness: 20~22mm
• Warranty: 5 years

SIZE & WEIGHT

Material	Thickness	Size	Weight
Silicon Carbide (Sic) Ceramic Strikeface	20mm/0.79"	250×300mm/10×12"	2.45kg/5.40lbs
Silicon Carbide (Sic) Ceramic Strikeface	22mm/0.87"	250×300mm/10×12"	2.75kg/6.06lbs
Aluminum Oxide (Al₂O₃) Ceramic Strikeface	20mm/0.79"	250×300mm/10×12"	2.70kg/5.95lbs
Aluminum Oxide (Al₂O₃) Ceramic Strikeface	22mm/0.87"	250×300mm/10×12"	3.05kg/6.72lbs

PROTECTION

WEAPON	AMMUNITION	VELOCITY (m/s)	VELOCITY (ft/s)
Rifle	.30-06 M2 AP	878	2880

CUSTOM OPTIONS

• Available in Single curve or Multiple curve;
• Cuts available in SAPI, Full cut, Swimmer cut and Shooter cut;
• Custom inscriptions with letters or logo;
• Custom sizes.

View full details

CCGK

TITAN Series | Ballistic Plate NIJ IV

Sale

Product Options

Sic Ceramic / 20mm
Sic Ceramic / 22mm
Al₂O₃ Ceramic / 20mm
Al₂O₃ Ceramic / 22mm

Product Options

DESCRIPTION

SPCIFICATIONS

Protection: NIJ Level IV Stand Alone (Rifle Rounds), NIJ 0106.01 compliant.
Material: Silicon Carbide or Aluminum Oxide Ceramic / PE Composite
Exterior Cover: Waterproof polyester
Curvature: Single Curve
Cut: SAPI
Protective Area: 0.07m²
Thickness:20~22mm
Warranty: 5 years

SIZE & WEIGHT

Material Thickness Size Weight

Sic + PE 20mm/0.79" 250×300mm/10×12" 2.45kg/5.40lbs

Sic + PE 22mm/0.87" 250×300mm/10×12" 2.75kg/6.06lbs

Al₂O₃ + PE 20mm/0.79" 250×300mm/10×12" 2.70kg/5.95lbs

Al₂O₃ + PE 22mm/0.87" 250×300mm/10×12" 3.05kg/6.72lbs

PROTECTION

WEAPON AMMUNITION VELOCITY (m/s) VELOCITY (ft/s)

Rifle .30-06 M2 AP 878 2880

CUSTOM OPTIONS

Available in Single curve or Multiple curve;
Available in SAPI, Full cut, Swimmer cut and Shooter cut;
Custom inscriptions with letters or logo;
Custom sizes.

Uncompromising Safety

Unyielding Defense

The CCGK NIJ IV SiC Ballistic Plate offers unyielding defense against the most challenging threats. Crafted with advanced Silicon Carbide material, this plate provides superior protection in high-risk situations, ensuring your safety when it matters most. With its robust design and cutting-edge technology, CCGK's NIJ IV SiC Ballistic Plate stands as a steadfast guardian for those who require uncompromising security.

Elevate Your Armor to the Highest Level

Armored for the Extreme

CCGK's NIJ IV Ballistic Plate sets the standard for supreme protection against high-velocity threats. Designed to be your armor's steadfast guardian, this plate offers uncompromising defense for those facing the most challenging situations. Its NIJ IV certification means it can withstand armor-piercing rounds, providing you with confidence in the line of duty or in high-risk environments. Crafted with precision and rigor, CCGK's NIJ IV Ballistic Plate is your shield against the unforeseen.

Standout Quality

Absolute Protection

CCGK NIJ IV SiC Ballistic Plate is the ultimate safeguard against high-velocity threats. Crafted from cutting-edge Silicon Carbide (SiC) material, this plate offers unparalleled ballistic performance while remaining remarkably lightweight. Its multi-curve design provides superior comfort, making it the top choice for those who demand the highest level of protection. Trust in CCGK for unmatched defense.
